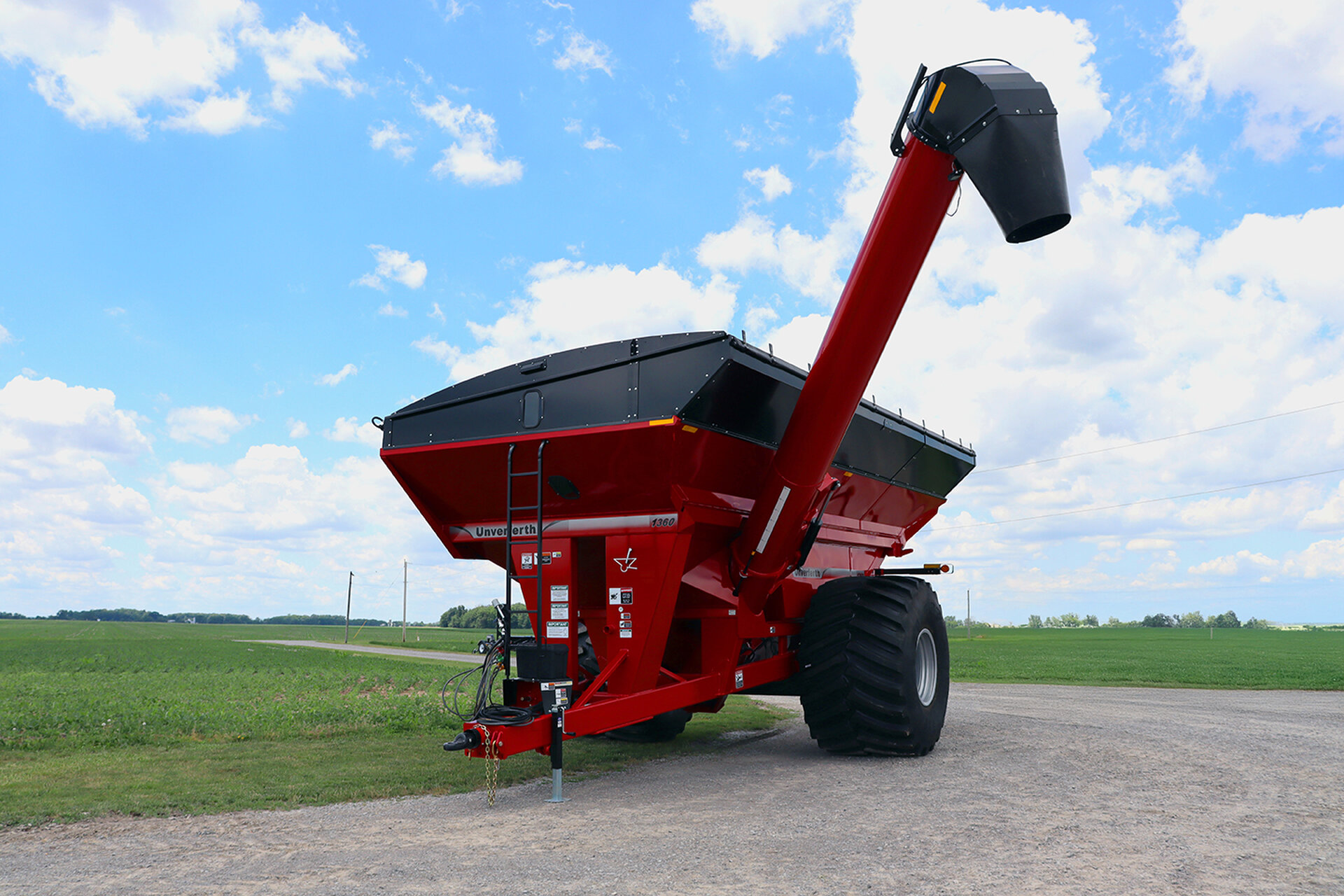

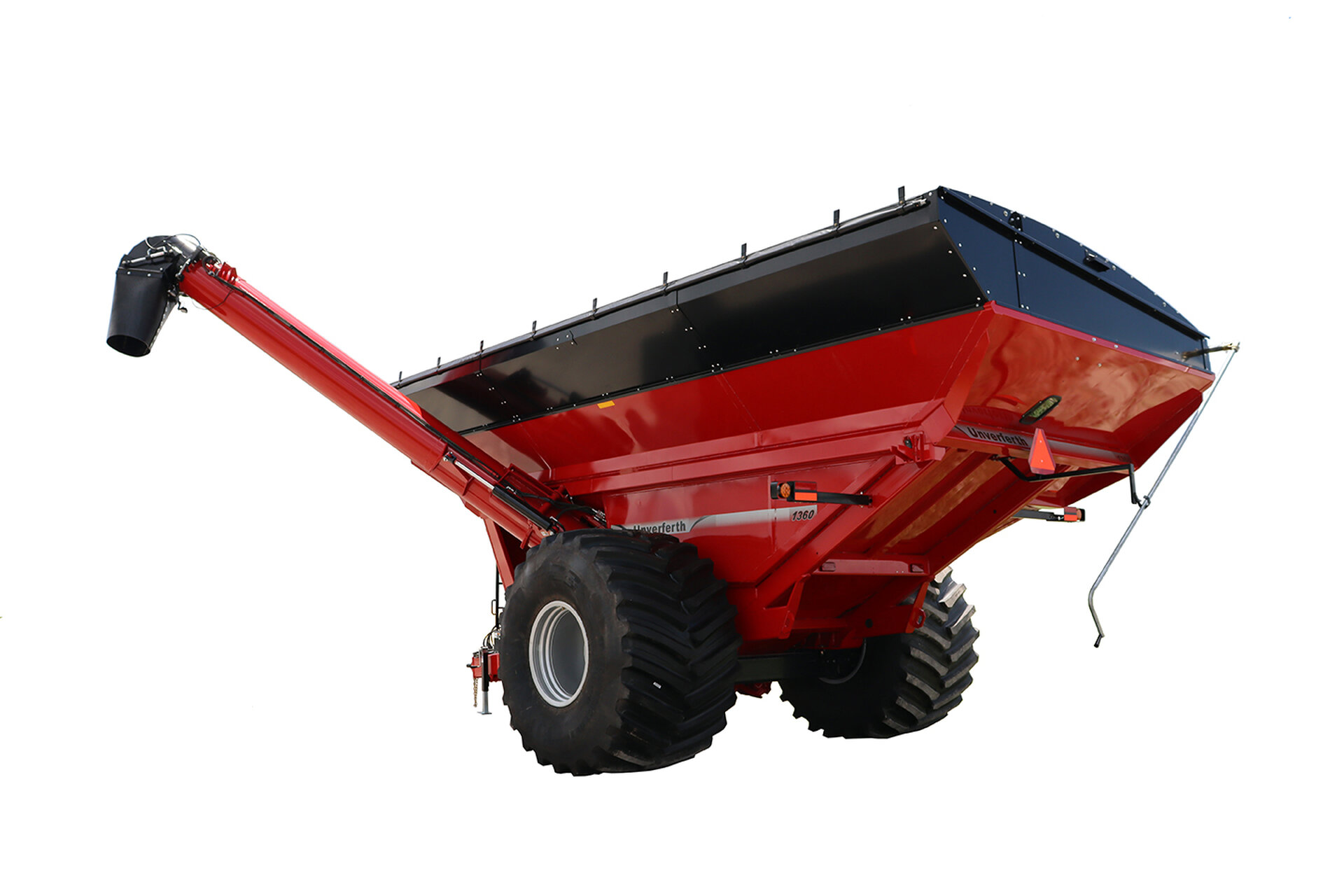

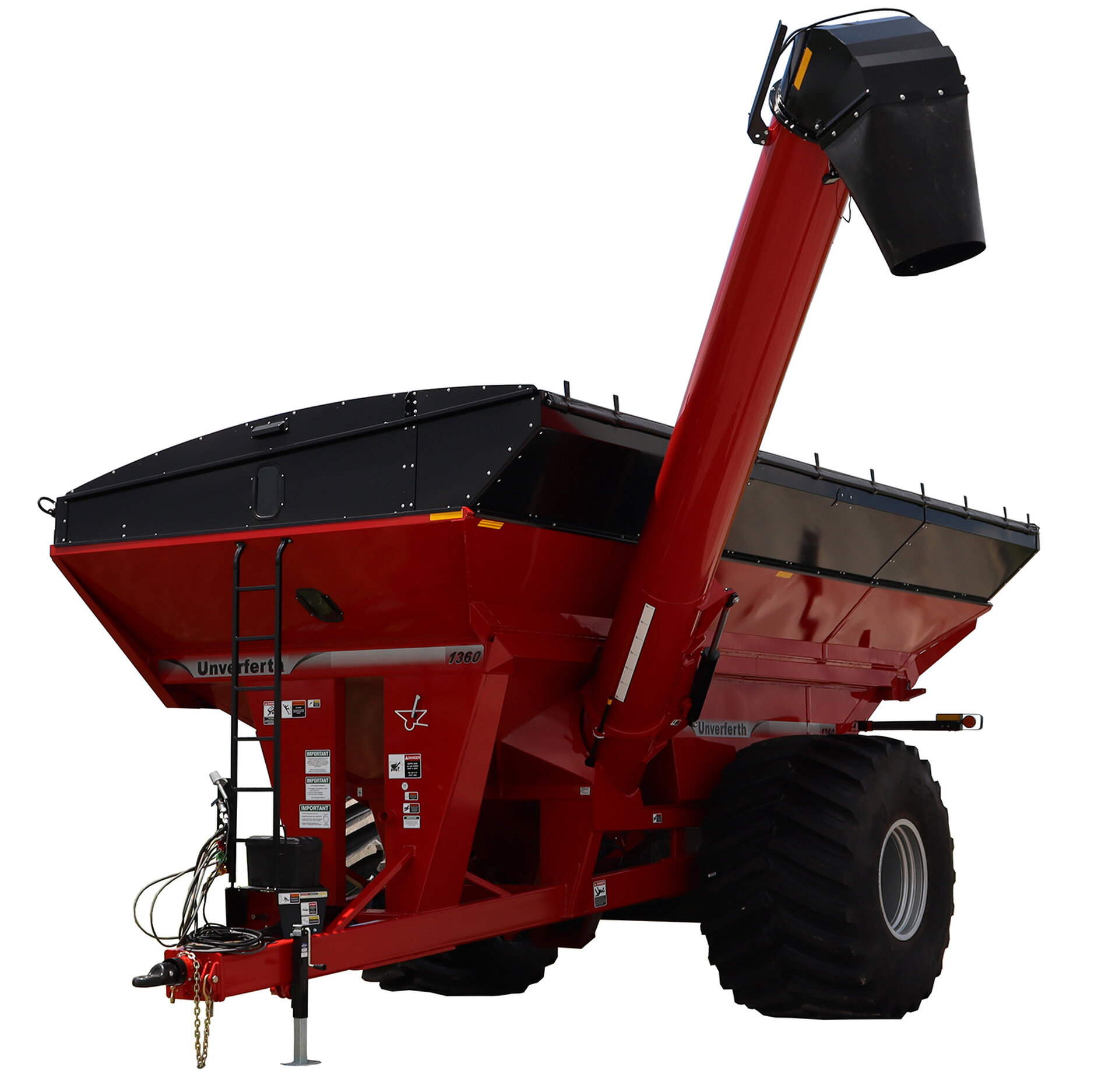

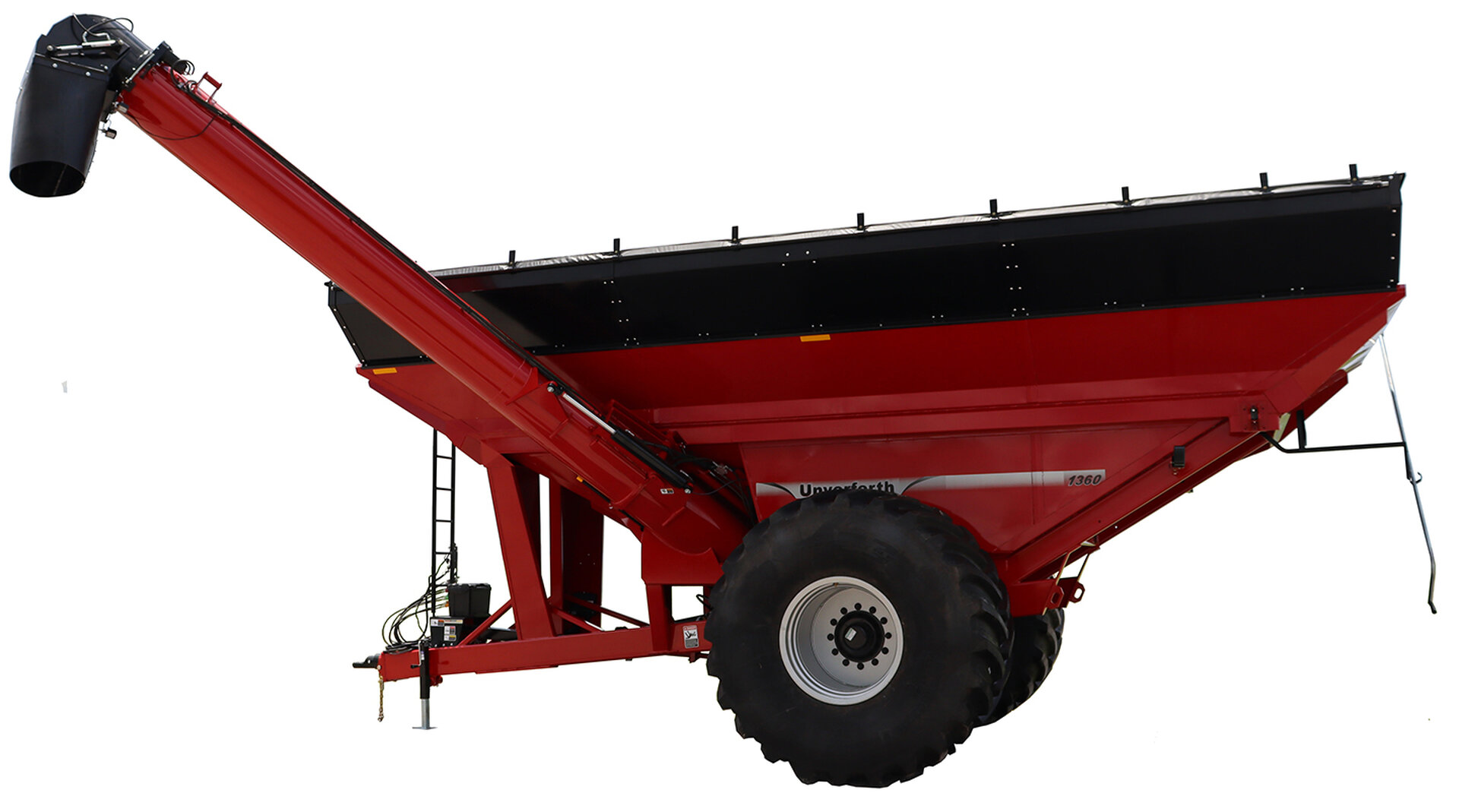

The Unverferth 60-Series of single auger grain carts feature a side-folding auger design that tucks in neatly along the side of the tank. This design allows the upper auger to be longer, equating to more side reach and greater height clearance and auger diameters up to 20” means faster unloading speeds!
60-Series Corner-Auger Grain Carts
Faster unloading speeds and increased auger reach and height! The 60-Series, side-folding, corner-auger grain carts provide unloading speeds up to 500 bushels per minute and the folding design allows the upper auger to be longer, providing up to 9' 9" of auger side reach and up to 13' of auger height depending on the model. Harvest efficiency is pushed to the max with 1,100 to 750 bushel capacities and an auger design that makes it easy to reach across ditches and fences, even over the tallest trucks and wagons. The compact auger-fold design tucks under the side of the grain cart for ease of transport and storage. An industry-leading design with a wide variety of undercarriage options and accessories. A 60-Series grain cart can meet your operation's demanding needs.
More Reach, Height & Speed!
Unloading accuracy is optimized when the auger downspout is pointed straight down and the 60-series grain carts provide up to 9’ 9” of auger side reach and up to 13’ of auger height when in this position, reducing the risk of throwing grain off target.
Models 1160 and 1060 feature a 20" diameter auger for unloading speeds up to 500 bushels per minute and models 860 and 760 features an 18" diameter auger for unloading speeds up to 450 bushels per minute.
The exclusively designed 3/8" thick max-edge auger flighting features 1/4" thick Abrasion Resistant (AR400) strips, made from high-carbon alloy steel, in high-volume areas to increase durability and extend the flighting life.
The patented rubber cushioned auger connection protects the upper and lower vertical augers from harsh tractor PTO engagements. Reducing stress helps extend the life of the driveline. Electronic balancing of the upper and lower augers eliminates vibration, providing a smooth unload.
The standard two-way turret-style downspout is hydraulically controlled with 60 degrees of side-to-side rotation which adds unloading flexibility when filling semis.
An optional 4-way downspout is available and adds in-and-out movement for even greater operator control. This option requires one additional hydraulic remote on the tractor in addition to the standard 3 remotes required.
A fully visible auger fold position indicator allows the operator to monitor the auger during the entire folding process from inside the tractor cab.
The upper auger features LED lighting that automatically turn on when the auger is unfolded for easier operation at night.
When unfolded, a pilot-operated check valve in the hydraulic system holds the upper and lower auger tightly together for a leak-free seal during unloading.
Models 1160, 1060, 860 and 760 feature tank capacities of 1,100, 1,000, 850 and 750 bushels to meet individual grower preferences.
The tank features an exclusive recessed auger sump design, located below the floor line of the tank, which funnels grain down into the auger for fast and complete unloading.
Steep 39° front and 34° rear tank slopes and a graphite coated interior ensure complete cleanout and faster unloading speeds.
Hydraulic Flow Gate
Hydraulically operated 36" flow gate features a highly visible position indicator for easily controlling grain flow while unloading.
Model 1160 is standard with a weatherguard roll-over tarp to protect your harvested crop.
This same weatherguard roll tarp is optional on all other 60-Series models.
Tank Standard Features
The 60-Series single auger grain carts feature a durable, high-grade enamel paint that is baked on in tractor red or green for a long-lasting and smooth, automotive-like finish and exposed seams are silicone sealed for corrosion resistance.
A conveniently located wheel-operated gravity unloading door, found on the auger sump, permits easy cleanout and pit dumping.
Front-mounted viewing ladder and front and rear shatterproof windows allow you to easily monitor the contents inside the tank.
Standard transport chain, D.O.T. approved flashing LED taillights, side marker lights, reflective markings and SMV emblem are included for safer road transport.
The 60-Series single auger grain cart lineup features industry-leading undercarriage options so you can choose the right undercarriage to meet your operation’s needs. Choose from high-flotation single wheels and tires, the 42” wide Equalizer® track system or a 36” wide traditional track system.
All models feature a cast 2" single-tang hitch with a smooth chamfer opening and bushings that fit numerous hitch pin sizes, allowing the cart to trail smoothly.
The heavy-duty side-wind jack is easy to operate for convenient tractor hookup and storage.
The exclusively designed, heavy-duty 45° gearbox features a 1 ¾” output shaft for long-term, trouble-free operation.
All models are available with a high-flotation single wheel and tire with various tire sizes available depending on the model and a rigid or adjustable axle depending on the tire size.
10-bolt hubs are manufactured from special alloy, high-strength steel with gusseted reinforcements for trouble-free operation.
36" Wide Tracks
The 36" wide track belt with 105” of ground contact length features a 4-bogie design and is available on the 1160 model. Models 1160 and 1060 can be equipped with a 2-bogie track with 87” of ground contact length.
40" end-wheels feature 10-bolt hubs that are greaseable with triple-lip seals and a steel guard for optimum lubrication. Purgeable grease hubs ensure the operator can “purge or push” out any dirt and debris from the hub, increasing the life and eliminating down time.
For a more economical design, models 1160, 1060 and 860 can be equipped with a 36" wide track belt with 75” of ground contact length and 2-bogie wheels.
32" main end-wheels feature 8-bolt hubs that are greaseable with triple-lip seals and a steel guard for optimum lubrication.
All 36” tracks utilize hydraulic belt tensioning adjustment for easier track alignment, optimum ground contact and even weight distribution. The conveniently located PSI gauge allows the operator to easily check the pressure, ensuring the proper tension is being applied to the belt.
The cast iron pivoting mid-rollers are on the same plane as the main end-wheels for optimum flotation and reduced stress on the belt.
The exclusive rubber belt construction molds the tread, guide lugs and belt together as one piece, increasing durability and eliminating the need for glued components.
42" Wide Equalizer Tracks
The Equalizer track system has a patented design that features 8° of side-to-side camber and 20° of front-to-back pivot with independent movement of each track to provide uniform ground contact on uneven terrain. The standard auto-greaser system provides automatic application of grease at more frequent intervals for consistent lubrication.
Standard hydraulic belt tensioning adjustment permits easier track alignment, optimum ground contact and even weight distribution. The conveniently located PSI gauge allows the operator to easily check the pressure, ensuring the proper tension is being applied to the belt. The exclusive rubber belt construction molds the tread and guides lugs and belts together as one piece. This increases the durability and eliminates the need for glued components.
Customize your 60-Series grain cart to fit your farming operation’s needs. Choose a UHarvest Pro Data Management system, conventional scale package, color camera and much more!
UHarvest Pro Grain Cart Scale
Your complete ISOBUS grain cart scale and harvest data solution! By utilizing ISOBUS technology, the user can operate the UHarvest® Pro grain cart scale and data management system on the virtual terminal display in the tractor, eliminating the need for batteries and extra monitors in the cab. Simply plug into the ISOBUS port and you’re ready to go! With a free subscription to Slingshot® reporting, you have a complete data management solution that seamlessly integrates with most crop insurance requirements. Need to send your data to the cloud? Simply connect your mobile device with cellular data to the Bluetooth signal and open the free UHarvest Pro app to make it happen!
Visit uharvest.net for complete information pertaining to the UHarvest Pro grain cart scale and data management system.
UHarvest Pro Features
The hitch weight management feature allows the operator to maintain optimum tractor and cart control by evenly distributing the grain load. This feature monitors grain and total cart weight and shows real-time hitch weight and a color gauge to avoid overloading the hitch during loading. Use the Combine Verify screen to easily calibrate the combine yield monitor with one touch. This calibration event is saved in the UHarvest Pro system once the verification process is completed.
Slingshot cloud reporting is included with every purchase of the UHarvest Pro grain cart scale system. Slingshot is a secure, first-of-its-kind, web-based system that lets you send, store and share your harvest data. Using the free UHarvest Pro mobile app, you can easily send files from the field on a mobile device with cellular connection to your Slingshot account. The free UHarvest Pro mobile app allows you to send your harvest data to Slingshot directly from the field. Once you have connected your mobile device to the Bluetooth connection provided by the GCM, launch the app and you're ready to go. Upload once a day or once a season. It's easy to use and completely up to you! (available on IOS and Android devices).
Want to easily send a report to your crop insurance agent that includes the actual dry bushel count? Consider it done with the optional Moisture Sense system. It measures grain moisture as it leaves the cart and averages the content of each load, then converts all grain unloaded to standard dry bushels for the ultimate harvest record keeping. The optional Accu-Load technology provides quick and easy loading of trucks by closing the grain cart’s flow gate when the desired weight is unloaded. After you’ve installed the HCV (hydraulic control valve) on the cart, simply push the “Auto” button for precise weight unloading. Each truck weight is matched to the truck name for easier operation. The operator can then focus on topping off each truck and proper grain placement.
Additional Scale Packages
All scale packages, including the UHarvest Pro, can be equipped with an optional remote scale display with a 4" x 18" LED screen mounted to the side of the grain cart for easy viewing of the loaded weight.
The model 520 Scale Package features auto-log and the patent-pending start/stop button for ease of use. The large, multi-line display features an alpha-numeric keyboard for easily editing or changing fields.
The combine check button can help calibrate the combine's yield monitor, accumulate weights per field entry and has the ability to store 1 years’ worth of harvest data in the monitor's memory. The 520 comes with PC software and a 1GB USB flash drive to easily download your harvest information to your computer in Excel or PDF format.
This option adds in-and-out hydraulic control to the standard side-to-side downspout for 4-way movement and total operator control. This option will require one additional hydraulic remote on the tractor in addition to the standard 3 remotes required.
The weatherguard rollover tarp is standard on model 1160 and optional on all other models to protect the tank’s contents. This features a custom design for a sleek appearance and easy operation and the low-profile tarp bows are reinforced to eliminate sagging. The heavy-duty, 18 oz. black canvas can withstand harsh weather conditions and the semi-trailer locking design provides optimum protection from high winds and moisture.
Hydraulic Drives are tongue-mounted for easy installation. The 100-gallon per minute hydraulic drive provides up to 375 bushels per minute unloading speeds and requires 3 sets of hydraulic ports. The 55-gallon per minute hydraulic drive provides up to 300 bushels per minute unloading speeds and requires 2 sets of hydraulic ports.
The Color Camera option features a 7" 12V monitor which mounts in the tractor cab. The sideboard-mounted, weather-proof camera monitors the inside of the tank during loading. An optional second color camera can be added which views rear traffic during transport.
*Bushel capacities were measured with #2 corn at 15% moisture (56 lb. test weight)
Due to continuing improvements in the design and manufacture of Unverferth products, all specifications contained herein are subject to change without notice.
|Minimum Tractor H.P.||200||200||180||150|
|Loaded Tongue Weight (lbs)||4,800||4,700||5,550||4,990|
|Empty Tongue Weight (lbs)||1,500||1,450||1,350||1,200|
|Unload Speed (bushels/min.)||500||500||450||450|
|Hub Size/Spindle Diameter||10 bolt - 4 1/2"||10 bolt - 4 1/2"||10 bolt - 4 1/2"||10 bolt - 4 1/2"|
|Hydraulic Remotes Required||3||3||3||3|
|Front/Rear Slopes (degrees)||39 - 34||39 - 34||39 - 34||39 - 34|
|Hopper Length||21' 6"||21' 6"||16'||16'|
|Hopper Width||13'||11' 10"||11' 10"||11' 10"|
|Auger Side Reach Max||Measured to Inside Edge of Rubber Spout||9' 9"||9' 9"||9' 2"||9' 2"|
|Auger Side Reach Min||7' 3"||7' 3"||7' 2"||7' 2"|
|Overall Transport Length||29' 7"||29' 7"||27' 7"||27' 7"|
|Hitch to Center of Axle||16' 10"||16' 10"||15' 7"||15' 7"|
|Single Wheels and Tires|
|Measured Undercarriage||Adj. Axle 1050/50x32||Rigid Axle 900/65x32||Rigid Axle 800/65x32||Rigid Axle 800/65x32|
|Empty Weight (lbs)||14,500||13,050||12,750||11,450|
|Hitch Height||1' 10"||1' 10"||1' 10"||1' 10"|
|Hopper Height Low Side||11' 8"||11' 8"||11' 3"||11'|
|Hopper Height High Side||12' 7"||12' 6"||12' 3"||12'|
|Auger Height with Spout Straight Down||13'||13'||12' 11"||12' 11"|
|Height to Top of Auger in Unload Position||17' 11"||17' 11"||17' 11"||17' 11"|
|Width Outside of Tires||14' 6"||14' 4"||12' 10"||12' 10"|
|Center of Tire to Center of Tire||
11' 3" min./12' 9" max.
|Under Frame Clearance||1' 5"||1' 5"||1' 5"||1' 5"|
|Measured Undercarriage||36"x112" Auto-Tension||36"x112" Auto-Tension||36"x112" Auto-Tension||N/A|
|Empty Weight (lbs)||21,500||21,000||19,200||-|
|Hitch Height||1' 5"||1' 5"||1' 5"||-|
|Hopper Height Low Side||11' 1"||11' 1"||11' 3"||-|
|Hopper Height High Side||12' 2"||12' 1"||12' 3"||-|
|Auger Height with Spout Straight Down||12' 11"||12' 11"||12' 10"||-|
|Height to Top of Auger in Unload Position||17' 7"||17' 7"||17' 8"||-|
|Width Outside of Tracks||13' 11"||13' 11"||13' 7"||-|
|Center of Track to Center of Track||10' 11"||10' 11"||10' 7"||-|
|Under Frame Clearance||1' 1"||1' 1"||1' 4"||-|
Loaded Tire Ground Pressure - P.S.I. calculated at the 3" penetration level.
For use as a comparitive guide in choosing between various tire/track options.
|42"x131" Equalizer Tracks||10.70|
|36"x148" Hydraulic Tension Tracks||9.48|
|36"x131" Hydraulic Tension Tracks||12.00|
|36"x112" Auto-Tension Tracks||13.64||12.80||11.37|
|480/80x46 Straddle Duals||18.17|
|420/80x46 Straddle Duals||18.22||16.28|
|520/85x42 Straddle Duals||15.79||13.02||11.63|
|480/80x42 Straddle Duals||15.62||13.96|
|520/85x38 Straddle Duals||24.44|
|IF 1250/50x32 (188A8)||16.36||15.01|
